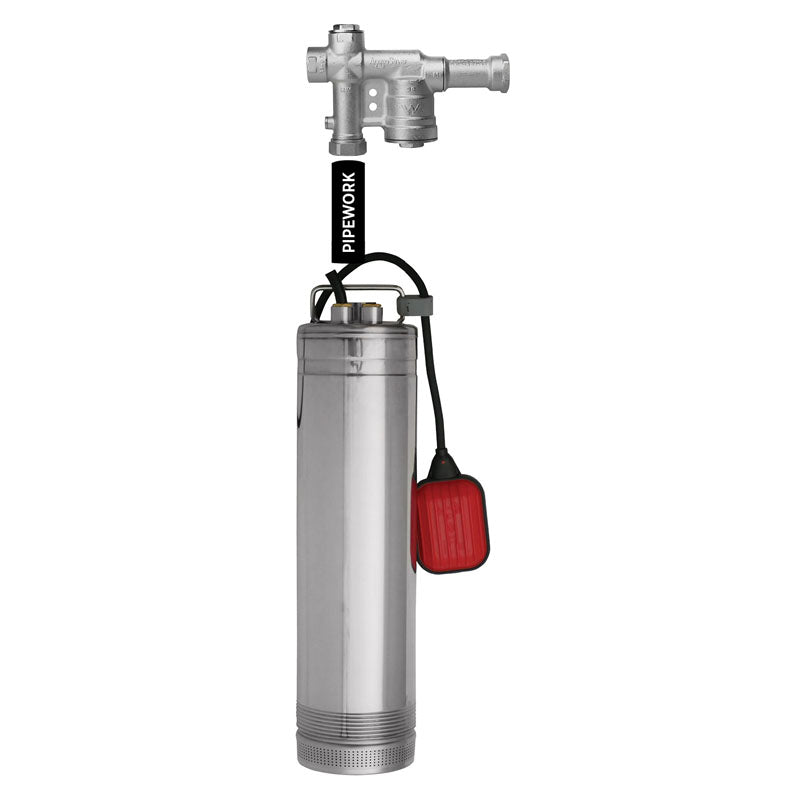

REEFE Submersible Pump RM5000-5 RPS34E with RM1500-2
REEFE Submersible Pump RM5000-5 RPS34E with RM1500-2
Suitable for: Average Sized Homes | 1-2 Bathrooms
The RM5000-5 features a Submersible Multistage Pressure Pump with integral controller, specifically designed for fast and easy installation. The majority of components in the RM5000-4 are made in Europe, guaranteeing exceptional quality and performance in Rainwater supply applications. This system is suitable for above or underground tanks.
| MEASUREMENT | Specification |
|---|---|
| Flow (L/MIN) | 80 |
| Head (M) | 32 |
| No. Of Impellers | 3 |
| Cable Length | 10m |
| Size DØ X H (MM) | Ø127×502 |
Description
Warranty: 2 Years on Pump and RM System
PUMP
- Automatic start and stop on demand
- Mains Flow – 50L/Min
- Integrated pressure controller with 220kPa/2.2 bar cut-in
- Supplied with 10m H07RN8F cable
- Integrated run-dry protection
- Auto restart function after run-dry event
- Compact design
- Water-cooled motor
- Thermal overload protection
RM SYSTEM
- 25mm Rain to Mains Valve with minimal pressure reduction on mains supply.
- Integrated check valve, 100% Hydraulic
- Corrosion resistant
- Certified to AS/NZS4020 for use with potable water
**It is critical that the correct pipe sizing is used. For example, the use of 20mm pipework throughout a large house will restrict the pressure, worsening with the distance from the pump.
Applications
- Toilet & laundry
- Units/ House / Cabin / Granny flat (1 bathroom)
- Garden irrigation*
*Check specifications required
Construction
- Stainless Steel AISI 304 Pump body, motor shaft, handle, cover, screen
- Polymer Impellers, diffusers
- Alumina Graphite, lubricated mechanical seal
- Valveset made from DZR Brass
Downloads
Download Product Brochure Download Technical Data Sheet
