Tank Gauge

Always know how much water is in your tank with this easy-to-read, tank-top tank gauge. Knowing your tank level will help you make better decisions about how you use your water.

The gauge is easy to set up and calibrate – so you can see at a glance where your water level is.

$20.00 inc. GST

Send Enquiry / Order Request For This Product

SKU: Tank Gauge Categories: ,

Features and Benefits

  • Quick and easy to install – simple DIY product
  • Seals directly to the tank
  • Suitable for all existing and new tanks
  • No batteries or wiring required
  • Easy to read dial face with ‘Empty’ and ‘Full’ indicators
  • Empty and Full indicators allow for a more meaningful measurement than a numbered dial (due to different rainwater tank widths and styles)
  • Requires a standard 32mm hole saw
  • Low maintenance requirements
  • UV resistant
  • Suitable for all vented tanks up to 2.5 metres (100 inches) in height
  • Able to be securely installed on a wide variety of tank shapes (dome-topped, flat, peaked)
  • Utilises a reliable float system

Installation Instructions

Download Installation Guide

Before installing your Tank Gauge it is important to calibrate it for use. This will allow you to set your own tanks Empty and Full positions and quickly see your tanks water level.

Calibration

  1. Carefully remove the front clear face from the Tank Gauge to enable access to the moveable Empty and Full indicators.
  2. Select an installation site on your tank for the Tank Gauge and mark it. It is preferable that this is a flat area and that once installed, will allow you to view the Tank Gauge face easily.
  3. Whilst maintaining the same height and keeping the weight outside of the tank, extend the weight so it is level with the bottom of your tank. Move the red Empty indicator to where the water level indicator is pointing.
  4. Lift the weight so it is level with the overflow on your tank and move the green Full indicator to where the water level indicator is pointing.
  5. Tank Gauge is now calibrated. Replace the front clear face.

Installing

  1. Drill a 32mm hole into your tank at the previously marked installation site.
  2. Lower the weight through this hole and sit the Tank Gauge on your tank.
  3. Using the supplied screws secure the Tank Gauge to your tank.
  4. Your Tank Gauge is now installed and ready for use.

Related Products

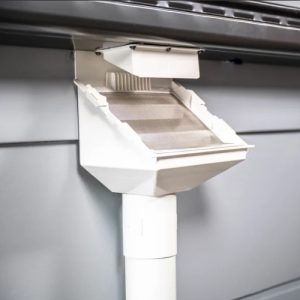

Rain Harvesting Leaf Eater Original with Clean Shield 90mmRain Harvesting Leaf Eater Original with Clean Shield 90mm installed

Accessories

Rain Harvesting Leaf Eater Original with Clean Shield 90mm

$59.00 inc. GST
Acquasaver RM1500-2 rain to mains valve

Accessories

Acquasaver RM1500-2 Rain to Mains Valve

$572.00 inc. GST
tank-guardian-easy-cleantank-guardian-debris

Accessories

Tank Guardian Easy Clean Screen 300-400mm

$20.00 inc. GST

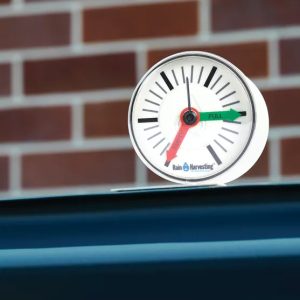

Tank GaugeTank Gauge Installed
