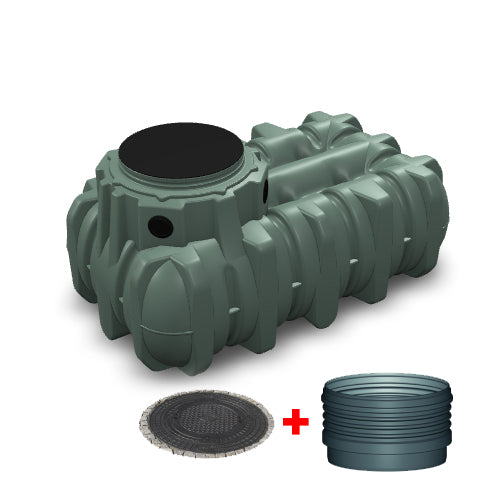

1500 Litre Garantia Lilo Underground Water Tank Driveway Package
1500 Litre Garantia Lilo Underground Water Tank Driveway Package
With a 1500 litre capacity, the innovative Garantia Lilo tank range by Graf is specifically designed for storage underground, providing all the extra water you need, conveniently and economically.
Underground water tanks can be used for water retention and/or detention.
| Dimension | Specification |
|---|---|
| Length | 2100mm |
| Width | 1250mm |
| Overall Height of Tank | 1015mm |
| Height of Tank Shoulder / Dome Collar | 700mm / 315mm |
| Inlet / Tank Dome | 650mm / 800mm |
| Weight | 82kg |
- The innovative Garantia Lilo tank range by Graf is specifically designed for storage underground, providing all the extra water you need, conveniently and economically
- Tanks are typically buried out of sight beneath a driveway or under your front or rear lawn, which also helps to keep the water cool
- Due to the Lilo Flat Rainwater Tank being underground, no rain or sunlight can penetrate it - keeping the water storage free from UV and reducing temperature fluctuations
Standard Inclusions
Pedestrian Lid
Tank comes with a PE double walled pedestrian lid. If placing the tank under a trafficable area, a car lid and extension riser is required at an additional cost.
Tank is sold on its own as is, no pipes or filter included.

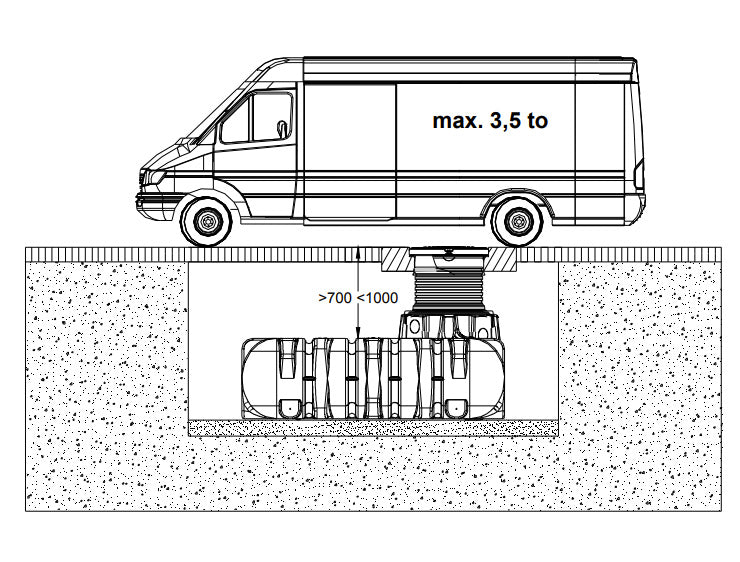

Placing Your Tank Under a Driveway
If placing tank under a driveway, a trafficable/car lid and riser (dome shaft) is required.
- The GARANTIA Li-Lo Rainwater Underground Tank with the cast iron cover (Class B) and cement support ring are suitable for installation in light traffic areas (max. total load 3.5 ton).
- The tanks are not to be installed in areas where heavy goods vehicles are driven.
- The areas driven by light traffic must have a compacted earth covering of not less than 700 mm (27.6 inch) and a maximum of 1000 mm (39.4 inch).
- Under no circumstances is the load caused by vehicles to be transferred to the tank
Site Preparation and Installation Information
Under all circumstances, the following points must be clarified prior to installation:
- The structural suitability of the ground according to DIN 18196
- Maximum groundwater levels which occur and drainage capability of the subsoil
- Types of load which occur, e.g. traffic loads
An expert ground report should be requested from the local planning authority to determine the physical characteristics of the subsoil.
Underground Water Retention Application
Underground Water Retention (Storage)
- Connected to a sites downpipes.
- Water is re-directed, filtered and stored.
- This water is then re-used via pumps to supply free water to washing machines, toilets and for irrigation purposes.
*Both images used for illustration purposes only - filter in image not available for purchase. Alternate filter available and sold separately (SUPRA Filter $550). Pipes not included. Installation recommended by a licensed plumber.
Water Tank Warranty
The range of Garantia Lilo tanks carry a 10 year warranty.
Garantia Lilo Underground Tanks
Delivery & Installation
- Delivery
- We deliver to accessible front of site properties in the Sydney metro area, the Central Coast and South Coast of NSW and some areas of the ACT. Our truck and trailer is about 19 metres long: tell us if your street or site is steep, narrow or a cul-de-sac.
- Lead Time
- Current lead time: 3–4 weeks from date of order.
- Installation
- We recommend a professional tank installer or plumber installs your tank. See the site preparation and installation information to get your site ready.
